DeckLink 4K Extreme 12G
The ultimate digital cinema capture card
by Blackmagic Design
Ref # BLADECKLINK4KEXT12G
For full specifications of this product please visit the Blackmagic Design site clicking HERE
PRODUCT DETAILS
The DeckLink 4K Extreme 12G is the ultimate digital cinema capture card featuring two full frame DCI 4K inputs and outputs! The multi rate 12G-SDI connections work with SD, HD and Ultra HD all the way up to full frame DCI 4K at 4096 x 2160 resolution at 60 frames per second. DeckLink 4K Extreme 12G supports 10-bit YUV and 8-bit, 10-bit and 12-bit RGB as well as 3D up to DCI 4K at 4096 x 2160 resolution at 60 frames per second.
The DeckLink 4K Extreme 12G includes a new mezzanine card design that adds HDMI in and out on a second daughter card along with sockets for adding 2 optical fiber modules for Dual Link optical fiber SDI in and out. SMPTE compatible optical modules can be added up to 12G-SDI speeds, allowing customers to choose to connect equipment using optical fiber connections instead of regular BNC copper cables for dramatically longer cable length, even at the faster 12 Gb/s speeds.
DeckLink 4K Extreme 12G is perfect for customers working on feature film, commercial, visual FX, and television productions that require high resolution, deep color, stereoscopic 3D and high frame rate support.
DaVinci Resolve 11 customers will benefit from the simultaneous capture and playback support as this lets them capture direct from cameras on set, grade the live video with multiple nodes of correction and then to output the video to an on set monitor, all live and in real time! This makes lighting a film set easy and allows DOP’s, directors and colorists to work together to optimize the film’s look on set.
OEM developers will also like the multiple new features in these models as they greatly benefit customized system development. These new features include full frame genlock timing, closed caption in all bit rates, automatic input detection support, better CRC input checking, extremely low latency and direct GPU support, plus the ability to write pixels directly into the card’s frame buffers and the ability to write their own custom drivers.
DeckLink 4K Extreme 12G includes two 12G-SDI inputs and two 12G-SDI outputs, reference input and RS422 deck control ports for capture and playback of all SD, HD, Ultra HD and DCI 4K formats. The card also includes HDMI input and output, AES/EBU balanced XLR and unbalanced RCA inputs/outputs, and analog video I/O via the included breakout cable.
“In developing the DeckLink 4K Extreme 12G we set out to design a card that just had everything we needed for high end feature film work in DaVinci Resolve, and we said to the engineers, don’t worry about cost, just make it as awesome as you can!” said Grant Petty, CEO, Blackmagic Design. “This new DeckLink 4K Extreme 12G is the result and it’s got everything we could want! But at the same time it’s also compatible with analog equipment from decades ago, all in the single card! Plus it’s still an affordable US$1,495, which is exciting!”
KEY FEATURES
- 2 x 12G-SDI in and out, supports SD, HD up to 1080p60, 2K, Ultra HD and up to DCI 4K at 4096 x 2160 resolution at 60 frames per second.
- HDMI 4K in and out, supports SD and HD formats up to 1080p60.
- Component analog in and out, supports SD and HD formats up to 1080p60, s-video and composite.
- 4 channels of balanced analog audio in and out on jack connectors.
- 2 channel AES/EBU balanced audio in and out on jack connectors.
- Genlock/tri-sync input.
- Sony™ compatible RS-422 deck control.
- Dual optical fiber sockets for adding optical fiber modules, up to 12 Gb/s speeds.
- Supports uncompressed 8, 10 and 12 bit and compressed video capture and playback.
- Plugs into older model MacPro, Windows and Linux computers.
- Supports DaVinci Resolve, Final Cut Pro™, Adobe Premiere Pro™, Photoshop™, After Effects™ and more.
- Includes free developer SDK for Windows, Mac and Linux.
- Includes free Media Express capture and playback software for Windows, Mac and Linux.
DeckLink 8K Pro
The ultimate digital cinema capture card!
by Blackmagic Design
Ref # BLADECKLINKPRO8K
For full specifications of this model and all other Decklink products please visit Blackmagicdesign site clicking HERE
Work with any video format and resolution that you need! DeckLink cards let you capture from cameras, decks and live feeds directly into editing, effects and design software applications such as DaVinci Resolve. Depending on the model you choose, DeckLink cards support the complete range of formats used in today’s high end film, television and commercial post production. You get 12-bit RGB support and 4:4:4 image quality for deep color and high dynamic range work, high frame rate support of up to 60 frames per second, stereoscopic 3D and more! There are DeckLink models to support either file or tape based workflows for perfect monitoring in editing and grading suites using professional SDI monitors, HDMI televisions and even digital cinema projectors.
DeckLink 8K Pro is an advanced Generation 3, 8 lane PCI Express capture and playback card designed for high resolution 8K workflows. Featuring four 12G-SDI connections, DeckLink 8K Pro supports all SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI formats. In addition to 8K, the four 12G-SDI connections can be configured for true multi channel capture and playback of 4 different video streams at any format or frame rate up to 4K DCI 60p using the free DeckLink SDK. DeckLink 8K Pro works in 8 and 10-bit YUV 4:2:2, as well as 10 and 12-bit RGB 4:4:4 You also get full Rec. 2020 support for deep color and true digital cinema quality images! The bi-directional 12G-SDI connections can be used for quad link 8K, single or dual link 4K, Ultra HD, HD and even SD. You can even capture and playback simultaneously!

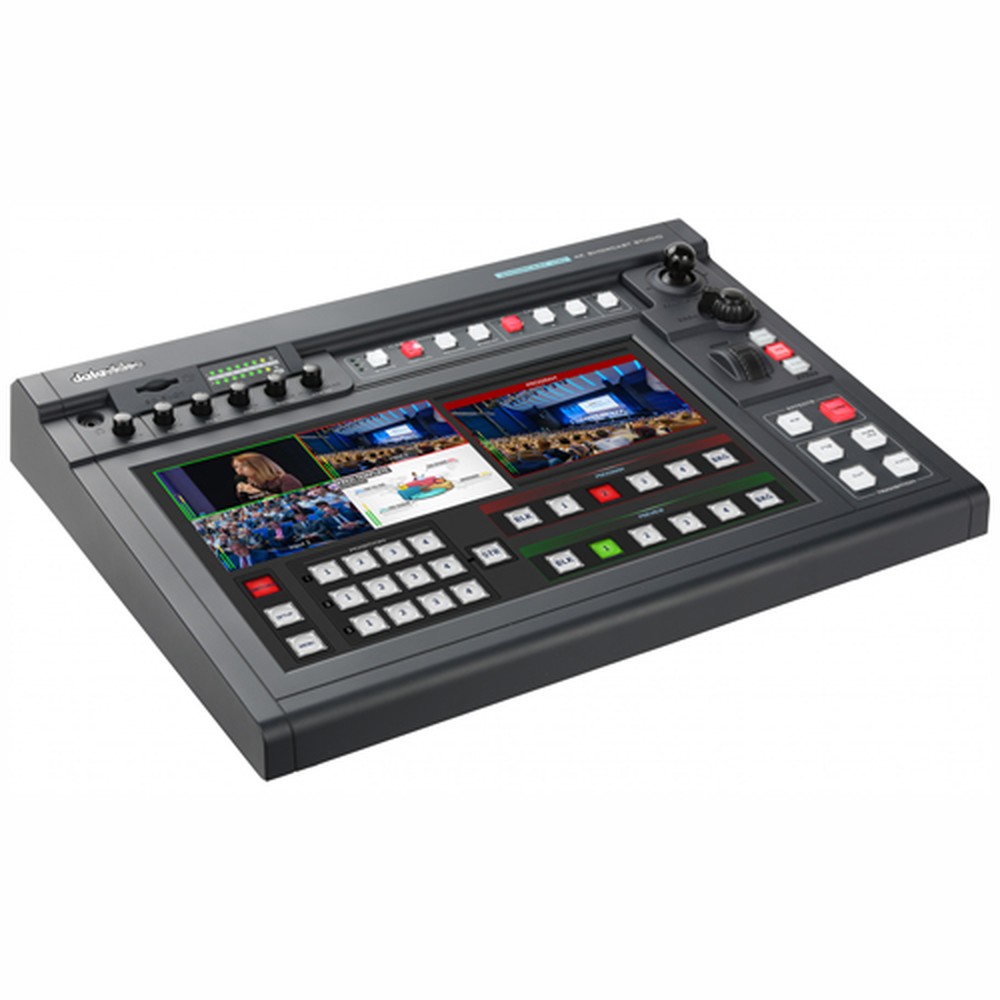

Showcast 100
All-in-one 4K Production Studio
by Datavideo
Ref # DATSHOWCAST100
For full specifications of this model of products please visit the Datavideo site clicking HERE
PRODUCT DETAILS
Innovative, Compact, Easy to use and All-in-one.
The SHOWCAST 100 is a brand new 4K 4-Channel All-in-one Production Studio that features 7 major functions. It can switch video, overlay text and graphics, control cameras, live stream, record, and mix audio all from a single unit. Similar to a tablet, the 14-inch touch panel allows easy and intuitive access to switcher functions.
KEY FEATURES
4K HDMI connections for inputs and outputs for connecting to a 4K projector or an IMAG screen. RJ45 connections for controlling up to 3 PTZ cameras via serial protocol.
4K60p 4-Channel Touchscreen Switcher
The touch panel allows easy and intuitive access to a variety of switcher functions. The SHOWCAST 100 has many functions with easy setup.
The unique all-in-one design streamline your video production workflow by reducing the number of external devices that you need to connect. SHOWCAST100 is light and compact. Its mobility makes it ideal for any live production environment.
Video Switching
The four HDMI input/output channels are designed for basic video production workflow of meetings, corporate conferences, church events, etc.
Camera Control
The SHOWCAST 100's built-in camera control functions allow you to simultaneously control three PTZ cameras. You can directly save the lens position presets, pan and tilt camera lens in real time, zoom in and out of an image, and adjust the white balance, iris and mirror mode.
Subtitles
The SHOWCAST 100 offers two ways to overlay subtitles. A lumakeyed subtitle is usually used for logos, animated texts, etc. Another way is to overlay subtitles using the built-in network streaming encoder.
Video Streaming and Recording
The built-in dual live streaming encoder allows you to record and stream simultaneously. With the SHOWCAST 100's recording capability, you can easily back up the recorded video files for post production edits without much effort.
Virtual Buttons
Virtual buttons on the large touch screen panel makes it easy for operating the switcher as well as setting up presets for cameras.
Operating the SHOWCAST 100 is as easy as using a tablet. Produce professional video productions without having a huge learning curve on how to use and operate a switcher.
Useful and Simple Transition Effects
Cut, Mix and Wipe are the three useful and simple transition effects built into the switcher. Via an easy-to-use 14 inch touchscreen UI, the transition settings will be immediately accessible after selection of a particular effect. For example, if you've selected WIPE, you can easily adjust the transition speed by dragging a slider with your finger or tap to select a color for the border.
PIP and Split
PIP is often required in video production. Most of the time, the PIP window size need to be adjusted for the program view. The SHOWCAST 100 allows you to drag different sliders on the touchscreen UI with your finger to set the aspect ratio of the PIP window. The split window is usually used for live interview, corporate presentations, and panel discussions.
Camera Control
The SHOWCAST 100's built-in camera control functions allow you to simultaneously control three PTZ cameras. You can directly save the lens position presets, pan and tilt positions in real time and zoom in and out of a shot. In addition, you can adjust the white balance, iris and mirror mode of each camera.
Camera Presets
Even though SHOWCAST 100 can control only three PTZ cameras, you can save up to four presets per camera, giving you a total of 12 different angles for your production. The 12 memory presets allow the director to instantaneously switch between different camera angles on SHOWCAST 100 by pushing corresponding preset buttons.
Fine Tuning the Camera Parameters
On the intuitive touchscreen UI, you can easily adjust the camera's focus, iris and white balance settings. Settings of a particular program can be saved in memory presets for future use.
Character Generation using the Network Streaming Server
The CG texts or image generated using the network streaming server can be overlaid on the video during streaming. The text size and color can be customized with a border added. The text or image position can also be adjusted accordingly.
Custom real-time captions and subtitles for your programs such as news broadcast.
Transcribe audio by entering subtitles line by line using News CG then play subtitles in real time by simply tapping the space bar on the keyboard
Live Streaming Encoder
The built-in dual live streaming encoder allows you to record and stream simultaneously. With the SHOWCAST 100's recording capability, you can easily back up the recorded video files for post production edits without much effort.
Depending on the bandwidth, you can set the bitrate to low, medium or high. To meet growing demand for mobile viewing, the portrait view can now be easily activated on the SHOWCAST 100 by simply pressing the VERTICAL button so that viewers will be able to view the program on their mobile devices by holding them upright without having to change the orientation.
Dual Streaming
During video production, you can simultaneously stream to two live streaming platforms such as Facebook, Youtube and Twitch. With Datavideo dvCloud, you can stream to 25 live streaming platforms at the same time and automatically back up your video files on the cloud server.
dvCloud and SRT
dvCloud is a professional live streaming platform developed by Datavideo. Once you've login, you will be allowed to create and manage all video streaming channels on dvCloud and stream your video to 25 live stream servers without any time constraints. The best part about dvCloud is that it allows you to back up video files on the cloud server for future downloads. The SHOWCAST 100 forms a low latency, secure and reliable streaming work flow with the SRT protocol and the dvCloud server.
Vertical Streaming
For each live streaming video, 50% of the audience view on mobile phones, and 94% of the mobile users prefer holding the phone upright to view the video. It takes only a few basic setups for the vertical streaming function of the SHOWCAST 100 to generate a portrait view of your streaming video.

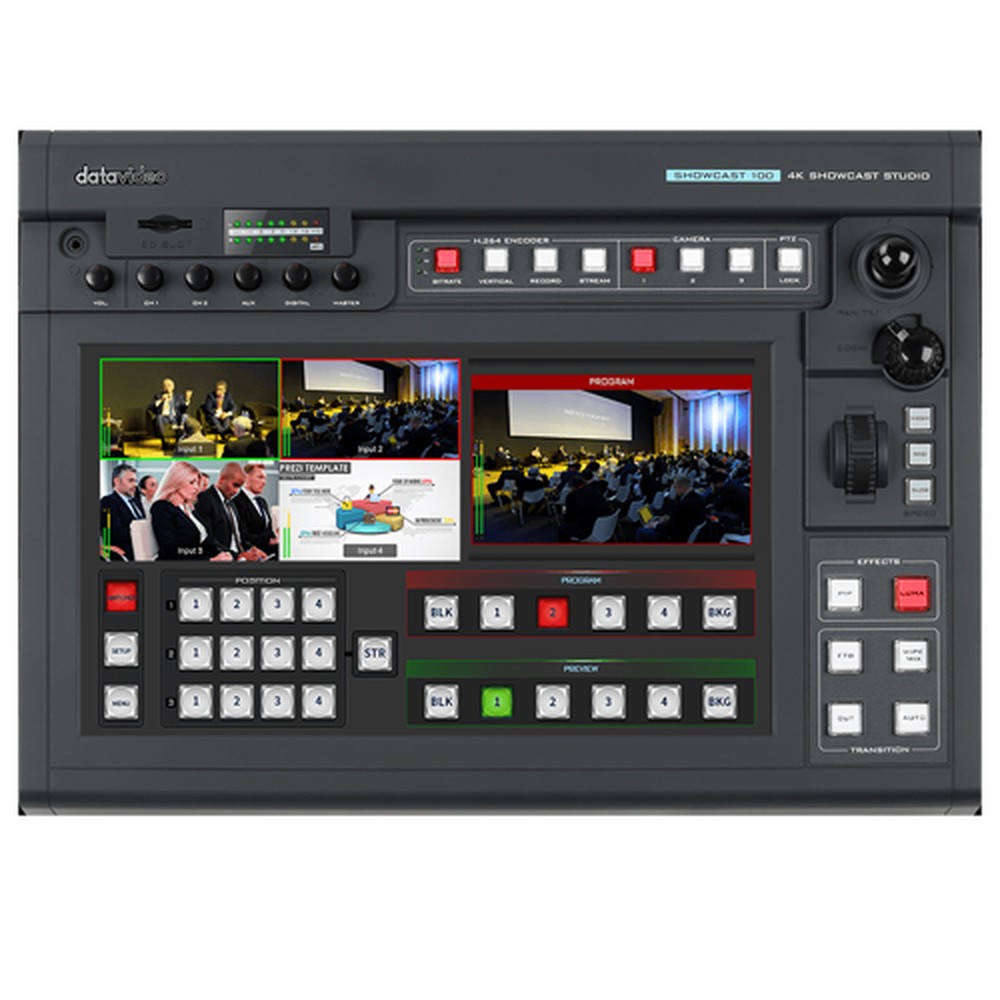

14 Inch Touch Screen and Intuitive Operation using the Touchscreen UI
The traditional physical keyboard of the switcher is replaced by a professional touchscreen UI to allow video switching, activation of subtitle overlay, camera control, video recording, audio mixing, etc. Operating of these functions is intuitive and easy to learn, even to novice users.
The SHOWCAST 100's intuitive touchscreen UI has several buttons with each assigned of one function only. The pane-like design divides the functions into different groups. Like a tablet, the touchscreen UI is intuitive and easy to use.
SD Card Recording
With the SHOWCAST 100's recording capability, you can easily back up the recorded video files for post-edits, etc without much effort.
Audio Mixing
The 4 Channel Audio Mixer accepts embedded audio, two LINE input channels, one AUX channel and one HDMI audio channel, giving you the ability to mix the audios while processing the image.

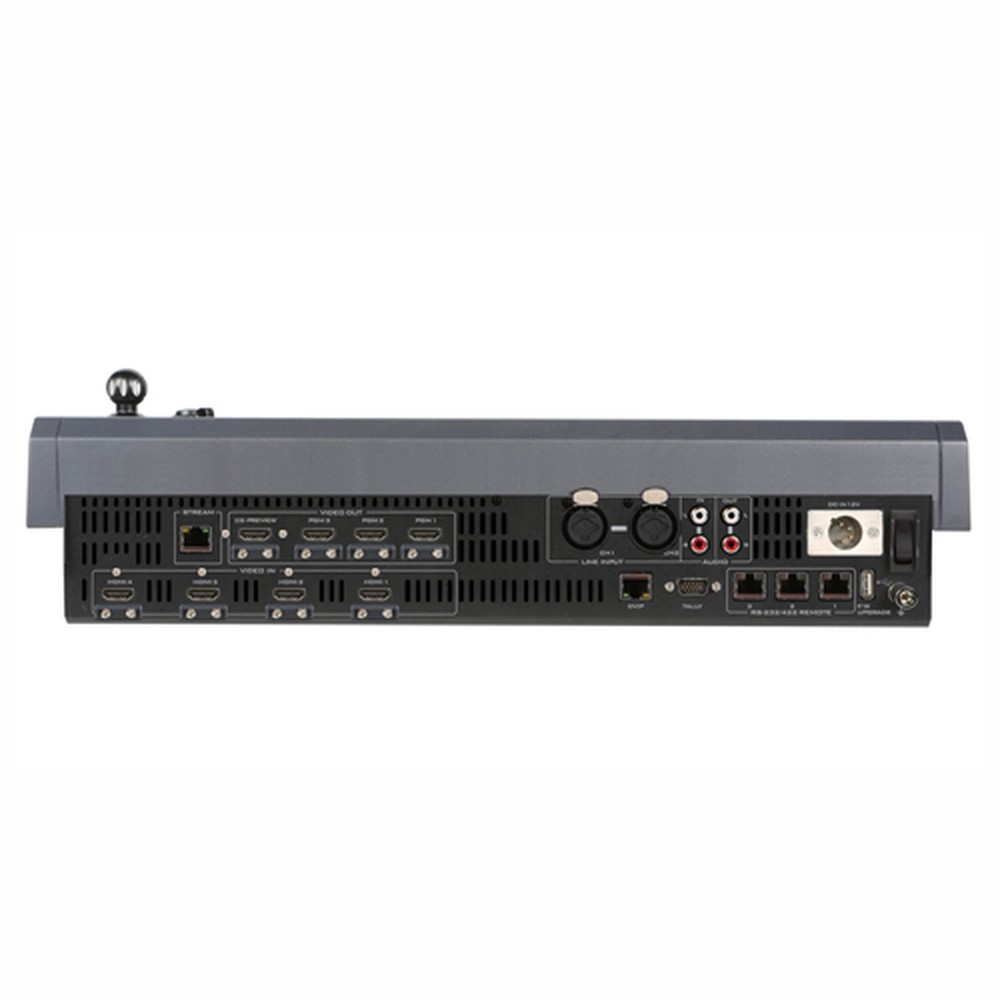

The SHOWCAST 100 has two XLR/6.3mm composite ports for LINE inputs. The dual channel RCA port is designed for analog audio input. The RCA output serves to connect external audio equipment for audio monitoring.
A wide variety of audio I/O ports
SHOWCAST 100 has an audio delay
PRODUCT WORKFLOW
