For full specifications of this product and all its variations (models, accessories, etc.), please visit the AXIS ATOM site by clicking HERE

PRODUCT DETAILS

Transmit, receive, monitor, and record high-quality wireless video transmissions using this compact Atom A5 5.5" Wireless RX/TX SDI/HDMI Monitor from Vaxis. The Atom A5 features a 5.5" touchscreen display that provides a sharp 1920 x 1080 resolution and 2000 cd/m² brightness. Its built-in wireless transmitter and receiver allow you to send and receive video between the Atom wireless transmitter/receiver ecosystem up to 1000' away. It has enough sharpness to be a great companion for your wireless follow focus.

The monitor supports up to 1080p60 video input via its SDI and HDMI inputs, and it features SDI and HDMI loop outputs to send video to an external display or switch. It also allows you to record your program as an MP4 proxy using the built-in microSD/TF card slot. Multiple imaging tools are available using the built-in CINE OS software, including scopes, peaking, and storage of up to 50 3D LUTs on the monitor.

KEY FEATURES:

Display
5.5" touchscreen LCD screen with 1080p resolution and 2000 cd/m² brightness

Input/Output
The Atom A5 SDI features SDI and HDMI inputs as well as SDI and HDMI loop outputs; it also features a 3.5mm headphone output on the side

Wirelessly Transmit and Receive Video
Transmitter and receiver in one; can transmit or receive to or from multiple Atom series transmitters and receivers

Recording
Record MP4 video files onto a microSD/TF card with the built-in media slot, and the Atom A5 SDI allows you to instantly play the footage back

Compatibility
Compatible with the Atom ecosystem, including the Atom 500 HDMI or SDI, Atom 600 KV TX, and Atom A5H

Timecode Sync
The Atom A5 SDI can sync timecode with the camera so you can simultaneously trigger record on the monitor when the camera records

Wireless Range
Transmission distance up to 1000'

Image Tools
The updated CINE OS software features multiple imaging tools such as peaking and scopes, and it supports up to 50 3D LUTs to be stored on the monitor

Antennas
Two replaceable antennas can be swapped out for optional longer-range antennas

Battery
Built-in dual NP-F970 L-series battery plate

What’s In The Box

    1x A5 SDI monitor
    4x Dual Cavs Antenna
    1x 32GB SD Card
    1x SDI cable
    1x Screen Protector
    1x Instruction card

Check the AXIS ATOM A5 Video:

For full specifications of this product and all its variations (models, accessories, etc.), please visit the AXIS ATOM site by clicking HERE

PRODUCT DETAILS

The ATOM 600 HDMI Wireless Video Transmitter/Receiver Kit from Vaxis enables visually lossless video transmission and reception with less than 80 ms latency. The powerful line-of-sight signal is handled reliably at up to 600' away and can simultaneously transmit to up to five devices, including two receivers and three mobile devices. The transmitter and receiver each feature a bright OLED display and a cooling fan that can be turned on and off to prevent undesirable noise during production. The units may be powered by L-series batteries, and a USB-C connector provides connectivity for firmware updates and may also be used as a 5V/2A power output.

KEY FEATURES:

    Supports Wireless Video up to 600'
    Supports up to 1080p
    Multiple Device App Monitoring
    Adjustable Cooling Fan
    Transmits to up to Five Devices
    Low <80 ms Latency Reception
    OLED Display
    Compatible with L-Series Batteries

Supports 1080p Wireless Video up to 600'
The flexibility of handling wireless video at up to 600' distances allows camera operators to move freely and create highly dynamic shooting angles while always ensuring a stable and reliable signal.

Real-Time Monitoring to up to Five Devices
Multicast support ensures real-time video monitoring via wireless to two receivers and three mobile devices simultaneously, with a low, less than 80ms latency.

Resolutions up to 1080p60
Whether you're shooting in a studio setting or if you're always on the go, you can reliably count on capturing high-definition images at up to 1080p60 with 100% video and audio sync.

Power and Cooling
The units can be powered using optional L-series batteries and feature integrated, adjustable cooling fans.

What’s In The Box

    1x Atom 600 HDMI transmitter
    1x Atom 600 HDMI receiver
    1x Instruction card

Check the Vaxis 600 video:

For full specifications of this product and all its variations (models, accessories, etc.), please visit the AXIS STORM site by clicking HERE

PRODUCT DETAILS

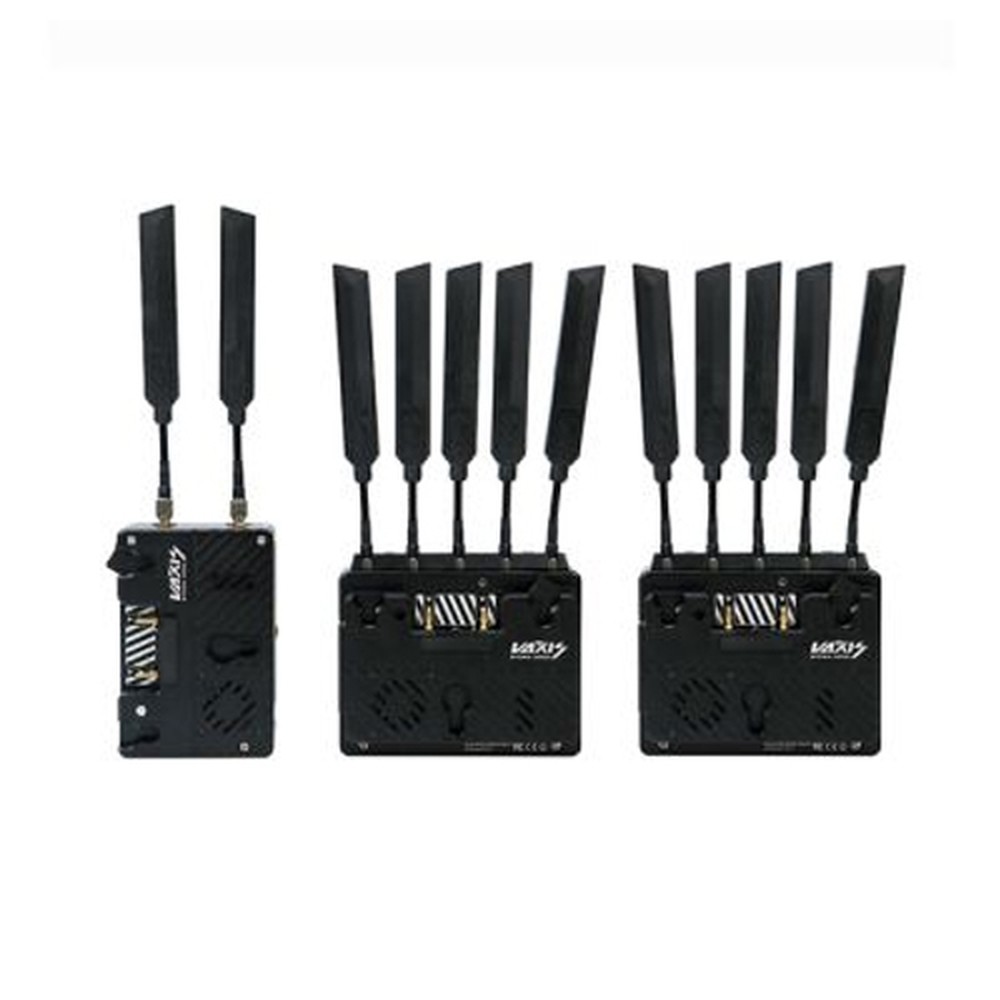

With the 3000 DV Transmitter and Receiver Kit from Vaxis you can transmit visually lossless, uncompressed video signals to the Vaxis Storm receiver with zero latency. The included blade antennas transmit and receive a powerful line-of-sight signal up to 3000'.

The transmitter features one HDMI input, one SDI input, and one SDI loop-through output. The receiver features two SDI outputs and one HDMI output, and together they support up to 1080p60 video transmissions. The transmitter also supports cross conversion from HDMI input to SDI loop output. Each unit can be secured to a camera or other SDI/HDMI video source via a built-in 1/4"-20 threaded hole.

The receiver features an integrated V-mount battery plate, and the transmitter features a dual V-mount plate which allows you to attach it to the V-mount plate on your camera and mount a V-mount battery on the other side, providing pass-through power to both the transmitter and the camera simultaneously. Each unit can be powered using its 2-pin LEMO-type connector with a separately available cable and AC or DC source.

The Storm 3000 system features 20 selectable 40 MHz channels, a 5.1 to 5.9 GHz wireless frequency range, and each unit features a bright LED display showing connection status and channel information. Two D-Tap to 2-pin LEMO power cables and a standard BNC cable are included so you can plug in right out of the box.

KEY FEATURES:

Transmitter and receiver set transmits up to 1080p wireless video up to 3000'

Transmitter features one SDI and one HDMI input, and one SDI loop output; receiver features two SDI outputs and one HDMI output

Units can be powered by a V-mount battery with their integrated plates, or with separately available external sources via their 2-pin LEMO-type ports

HDMI/SDI cross-conversion support on transmitter

Bright LCD screen on each unit for settings, status, and to scan for open frequencies on 5.1 to 5.9 GHz range

Each unit mounts on rig using 1/4"-20 thread

Check the Vaxis Storm 3000 DV video:
